| Luogo di origine: | Guangdong, Cina |
|---|---|
| Certificazione: | ROHS,SGS |
| Numero di modello: | M-GR |
| Quantità di ordine minimo: | Negoziato |
| Prezzo: | negotiable |
| Imballaggi particolari: | Imballato in cartone |
| Tempi di consegna: | 3~8 giorni |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 100000pcs/day |
| Tipo: | Foglio composito | Colore: | Gray& Nero |
|---|---|---|---|
| Conducibilità termica: | 800-1700w/mk | Durezza: | 85 riva A |
| Nome di prodotto: | Strato della grafite | Dimensione: | La richiesta dei clienti |
| Imballaggio: | Imballaggio standard dell'esportazione | Uso: | Illuminazione LED / Dissipatore di calore / TV LCD / DVD / PC / Cellulari |
| Evidenziare: | Strato della grafite del carbonio di 85 rive A,strato della grafite del carbonio 800w/mk,strato conduttivo termico della grafite 800w/mk |
||
Customized Electrode High Pure Conductive carbon Graphite Sheet For Industries
Graphite Sheet
M-GR thermal conductivity of graphite is the natural graphite sheet with high thermal conductivity. Which is easy construct. It is flexible and compressible. Also, it can provide a coating (such as insulation requirement) , non-coating, or something wrapped. The applicable temperature extends from -40~400℃(inert environment). Without gas, liquid penetrate, no aging for graphite layer and embitterment, it can be applied into most of the chemical medium. Thermal conductivity of graphite can be custom-made required by clients. It has wide applications, such as integrated circuit, electronic device, high power density computer, conducting cutting-edge electronic instrument and so on. Which enjoys a good market background in mobile phone, computer and electronics industry.
Advanced chemical treatment and mechanical procedure etc.This products inhance excellent properties such as thermal stable,with stand high and low temperature,corrosion.
|
Item |
Unit | Value |
|
Tolerance of density |
g/cm3 | -0.06 - +0.06 |
|
Tolerance of thickness |
mm | -0.06 - +0.06 |
|
Carbon content |
% | 99 |
|
Tensile strength |
MPa | 4.5 |
|
Compressibility |
% | > 40 |
|
Recovery |
% | > 10 |
|
Sulphur content |
ppm | < 1100 |
|
Chlorine content |
ppm | < 45 |
|
Temperature (in oxidizing atmosphere) |
℃
|
-200 - 600 |
|
Length |
mm | up to 1500 |
|
Width |
mm | up to 1500 |
|
Thickness |
mm | 1.0 to 3.0 |
| Density | cm3 |
1.0 |
For making different kinds of graphite belts. packings, gaskets, composite plates, cylinder gaskets, etc.

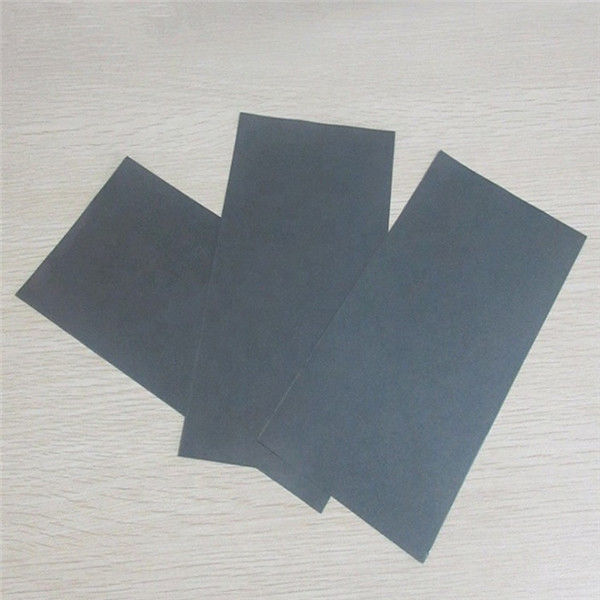

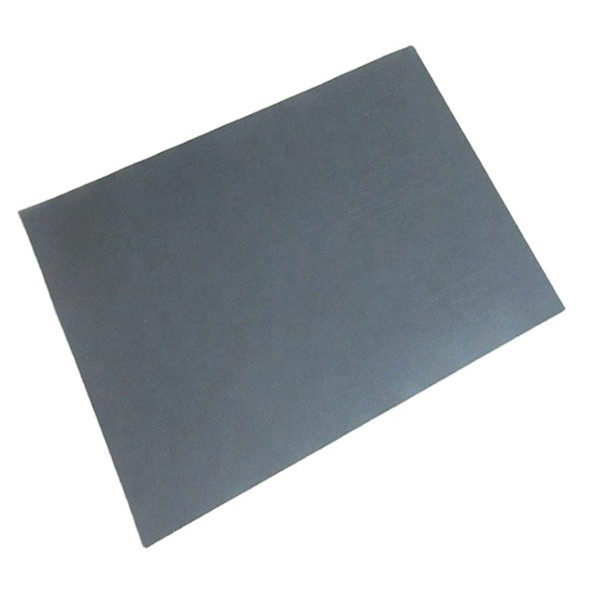

Product Pictures
FAQ
Q: What is the size of the product you can supply?
A: Thickness: 0.06mm/ 0.075mm/0.11mm
Jumbo roll size: 500mm X 500m
Log roll size: 500mm X 33m
Slit roll size: We can make the width down to 1mm Custom size is welcomed
Q: May I get samples?
A: Yes, of course.
A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.
Q: How about the price?
A : Polyimide tape manufacturer direct sale price
Also, supply this item in various grades to meet customer demands.
Q: What is your MOQ?
A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.
Q: What should we pay attention to when used it?
A: Just let know application, then we shall offer solutions.
